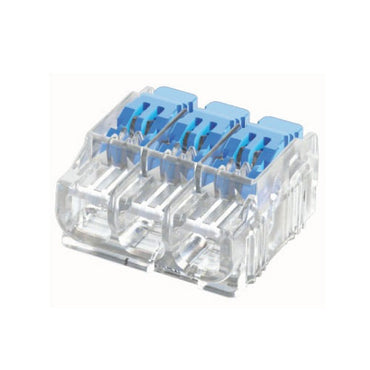

Ideal Gen II Lever Wire Connector, Mixed Box


QAR 32,00

  • Box contains 10 x 2-port, 10 x 3-port, 10 x 5-port
  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector – for solid, stranded and flexible wires
  • Innovative levers – opens in the opposite direction of insertion points
  • Compact design – suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection
  • Secure your cables in seconds – no screwdriwer, no crimping, just strip, push, connect
  • Wire clamping range - 0.2 mm2 to 4.0 mm2 (24 - 12 AWG for solid and rigid stranded wires (7 strands) and 0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires
  • BS 7671:2008 (18th Edition), IEC 60998 and UL 486C compliant
  • CE, UKCA, UL and ENEC approved
